Kia Carens: Charging System / DC DC converter Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Charging System / DC DC converter Schematic diagrams

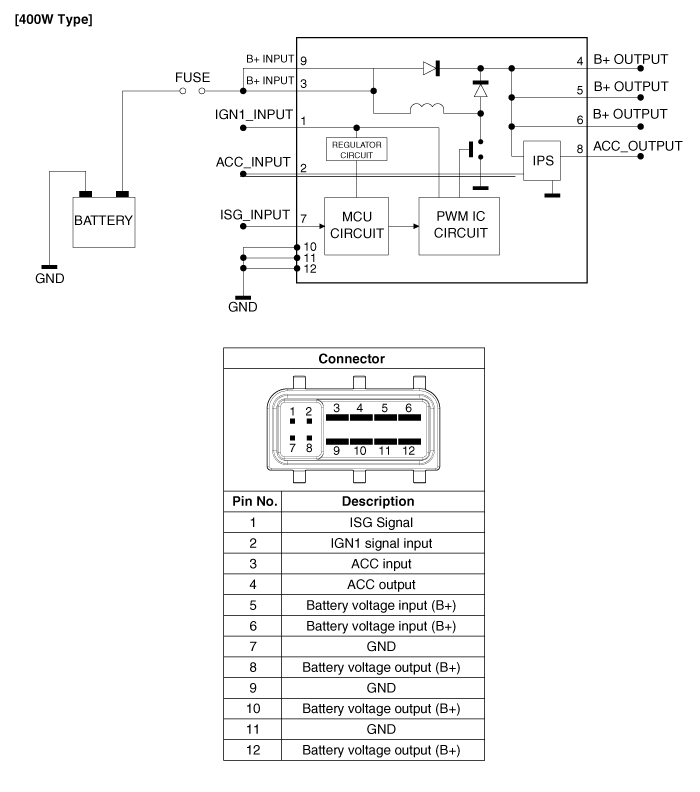

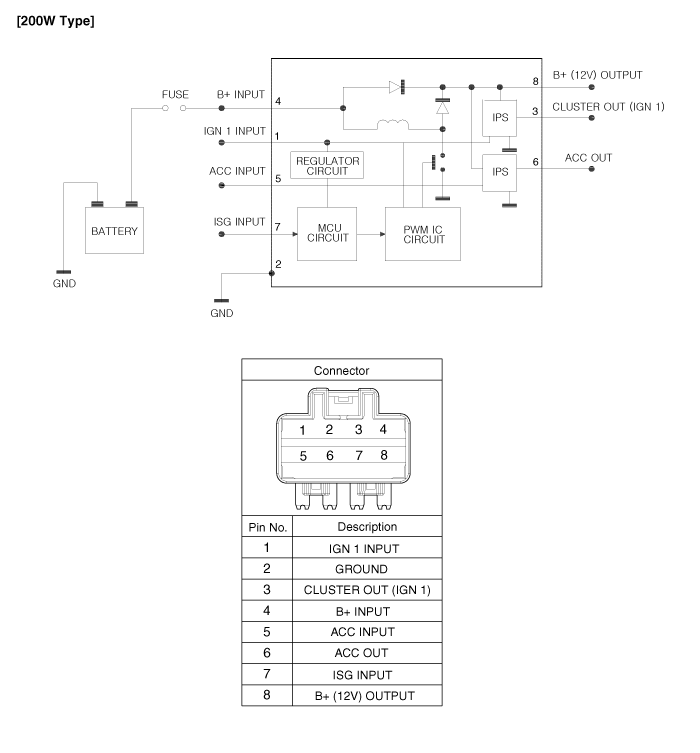

Circuit Diagram
