Kia Carens RP (2013-2018) Service Manual / Brake System / Brake Pedal / Components and components location

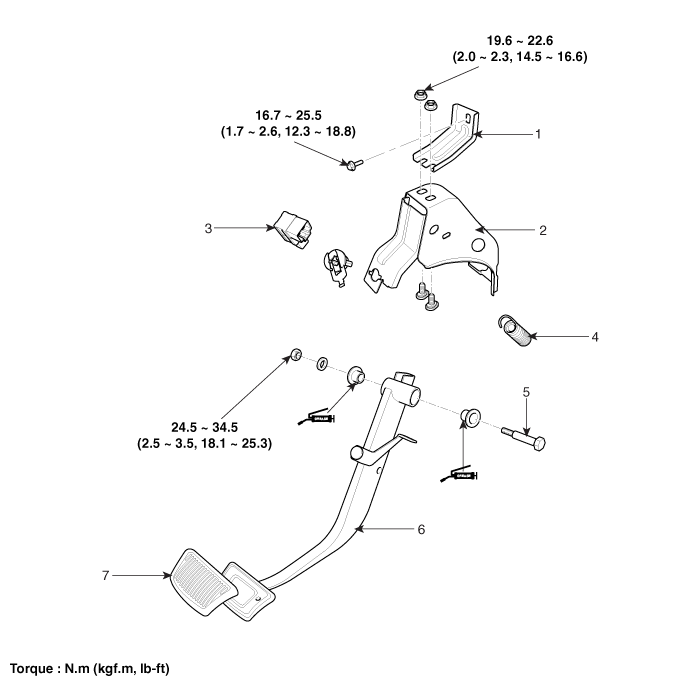

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Bolt
6. Brake pedal arm
7. Brake pedal pad

Brake Pedal
...

Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Ref ...
