Kia Carens: Timing System / Crankshaft Damper Pulley Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley Components and components location

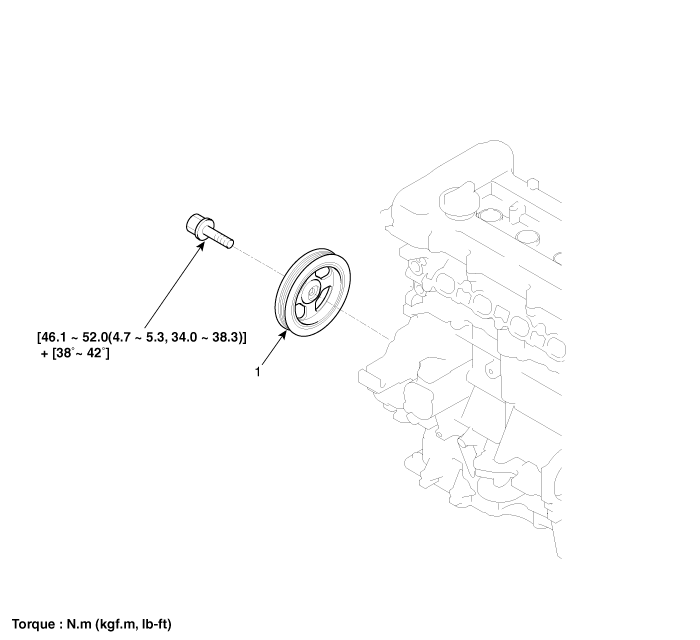

Components

1. Crankshaft damper pulley

Drive Belt Tensioner Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the alternator. ...

Crankshaft Damper Pulley Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the engineroom u ...
