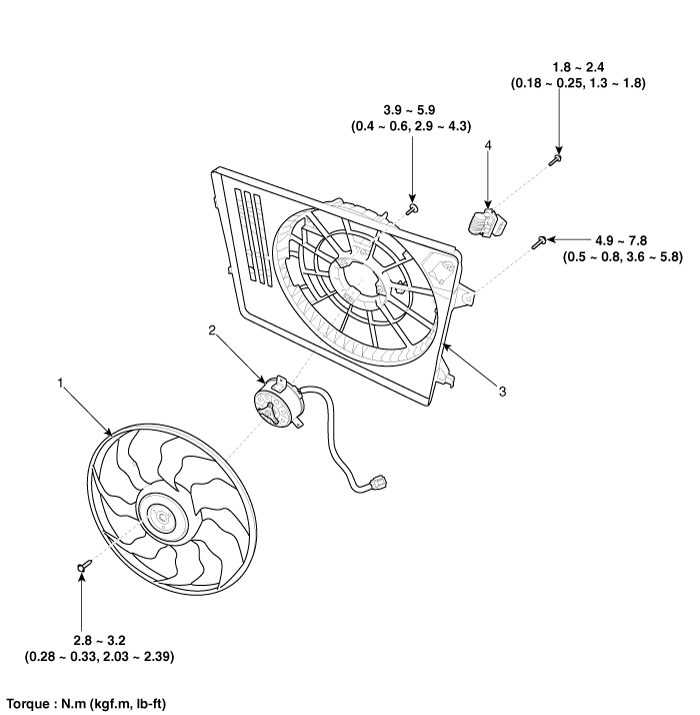

Components

1. Cooling fan
2. Fan motor

3. Cooling fan shroud
4. Cooling fan resistor

Reservoir Tank Repair procedures

Removal and Installation 1. Disconnect the over flow hose (A). 2. Remove the reservoir tank (B). Tightening ...

Cooling Fan Description and operation

Description [Air conditioning type] The cooling fan operates in 2 stages (HIGH/LOW). The engine control module (ECM) controls the cooling fan according to the coolant temperatu ...
