Kia Carens: Automatic Transaxle / Components and components location

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle / Components and components location

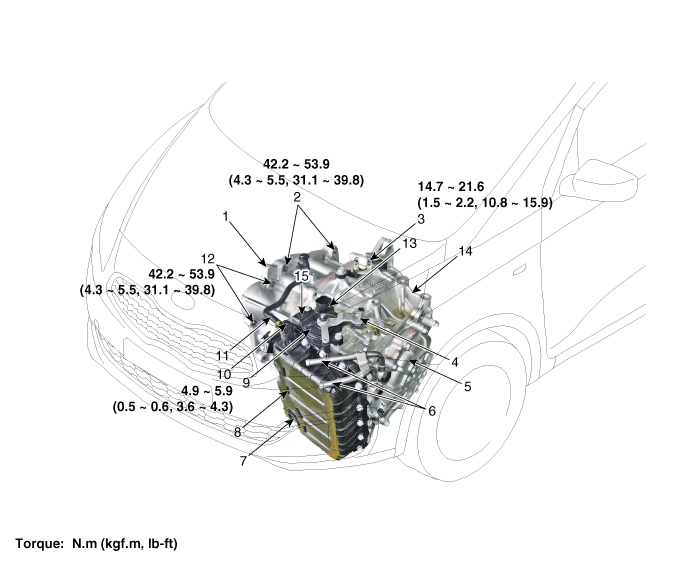

Components Location

1. Converter housing
2. Automatic transaxle upper mounting bolt
3. Shift cable bracket
4. Manual control lever
5. Rear cover
6. Oil cooler tube
7. Oil level plug
8. Valve body cover

9. Inhibitor switch
10. Injection hole(eyebolt)
11. Air breather hose
12. Starter motor mounting bolt
13. Solenoid valve connector
14. Automatic transaxle case
15. Inhibitor switch connector

Repair procedures

Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air cleaner") 2. Remo ...
