Kia Carens: Clutch Cover And Disc / Components and components location

Kia Carens RP (2013-2018) Service Manual / Clutch System / Clutch Cover And Disc / Components and components location

Components

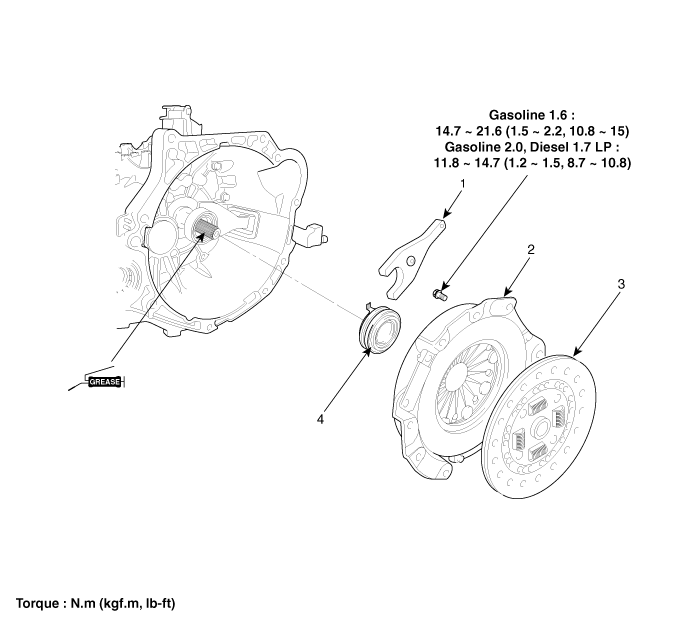

[Gasoline 1.6 / 2.0, Diesel 1.7 LP]

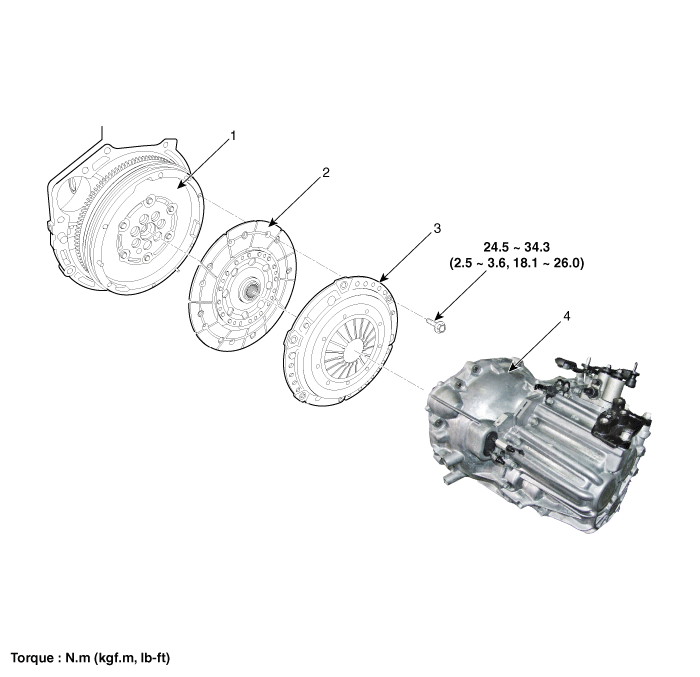

[Diesel 1.7 HP]

1. Engine flywheel
2. Clutch disc

3. Clutch cover
4. Manual transaxle

Repair procedures

Removal 1. Remove the transaxle assembly. G 1.6 GDI (Refer to Manual Transaxle System - " Manual Transaxle") G 2.0 GDI (Refer to Manual ...
