Kia Carens: Back View Camera System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Back View Camera System / Components and components location

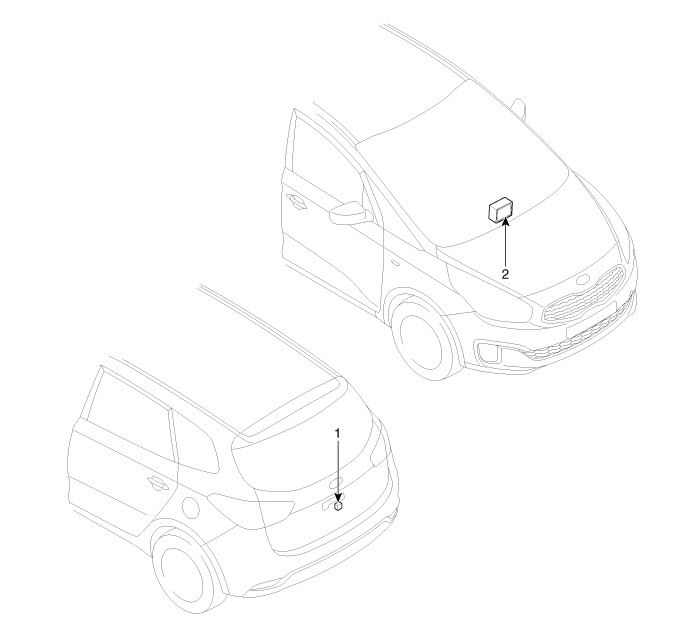

Component Location

1. Back view camera
2. Audio/AVN head unit
