Kia Carens: Speed Limit Information Function (SLIF) / Operation
.png)
- If a traffic sign that is relevant to your vehicle is passed, the system
displays the information of the speed limits and no passing restrictions to
the driver.
- When the driver turn on the ignition, the system displays stored information
of the speed limit before turn off the ignition.
- Sometimes different speed limits are displayed for the same road. The information
displayed depending on the situation. Because, traffic signs with additional
sign (e.g rainy, arrow...) are also detected and compared with vehicle interior
data(e.g wiper operation, turn signal...).
- The system can update the speed limit information without visible speed
limit signs in the following situations.
- When you change your driving direction with right or left or U turning.
- When vehicle changes roads. (e.g. from highway to country road…)
- When you enter or exit into town or village.
✽ NOTICE
If speed limit value has the difference between cluster and navigation, check
the speed unit setting in navigation.
SLIF Setting method :
Cluster User Settings → Driving Assist → SLIF (Speed Limit Information Function)
The information of speed limit and no passing restriction will appear on
the cluster us ...

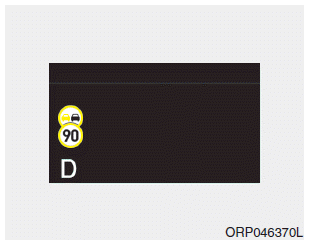

If the system doesn’t have a reliable speed limit information, the following
symbol is displayed in both the instrument cluster and navigation screen.
If the system detect no passing sign, ...
