Kia Carens: Windshield Deicer / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Windshield Deicer / Components and components location

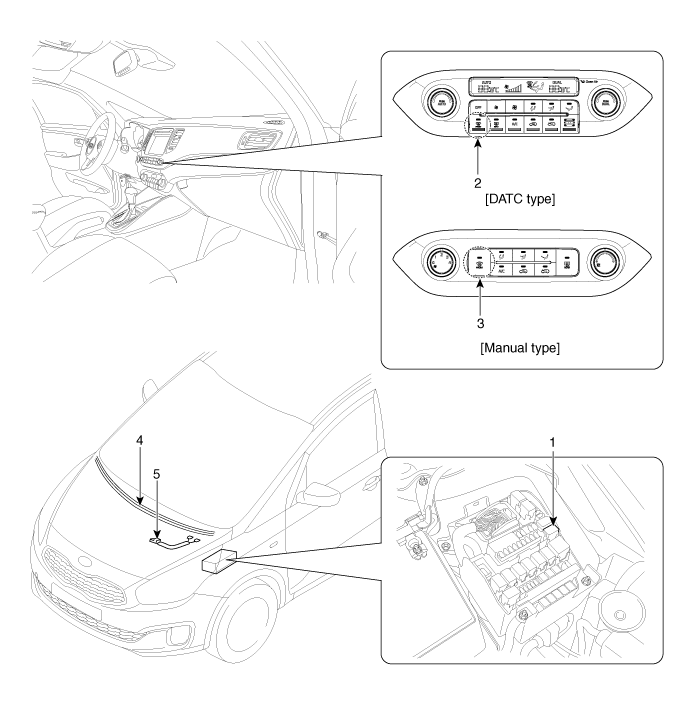

Component Location

1. Windshield deicer relay (Built-in engine room relay box)
2. Windshield deicer switch (DATC type)
3. Windshield deicer switch (Manual type)

4. Windshield deiecr
5. Deicer connector

Description and operation

Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body co ...
