Kia Carens: Roof Trim / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

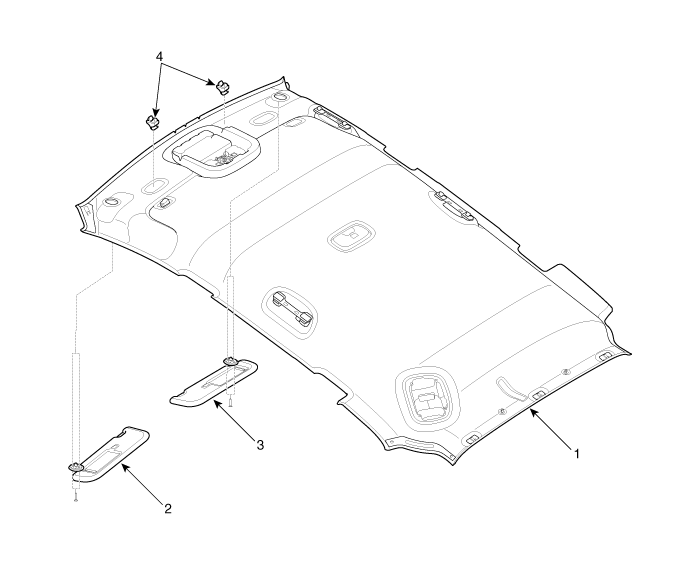

Components (1)

[General Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
4. Retainer

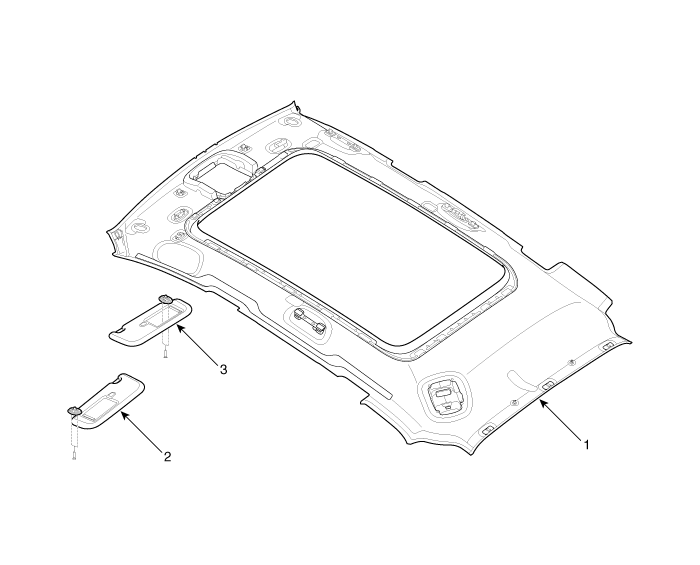

Components (2)

[Panorama sunroof Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
