Kia Carens: Power Windows / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Windows / Components and components location

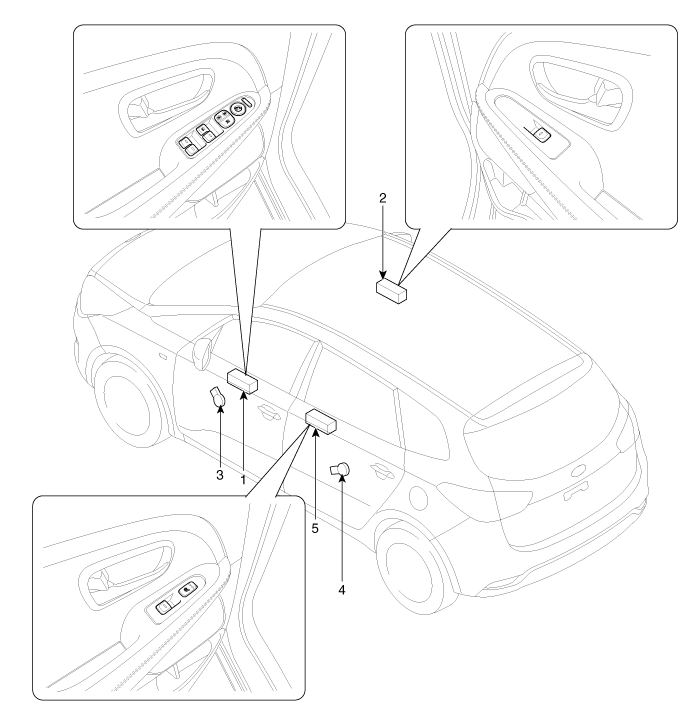

Component Location

1. Drive power window switch
2. Passenge power window switch
3. Front window motor
4. Rear window motor
5. Rear window switch

Power Windows
...

Description and operation
Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition ...
