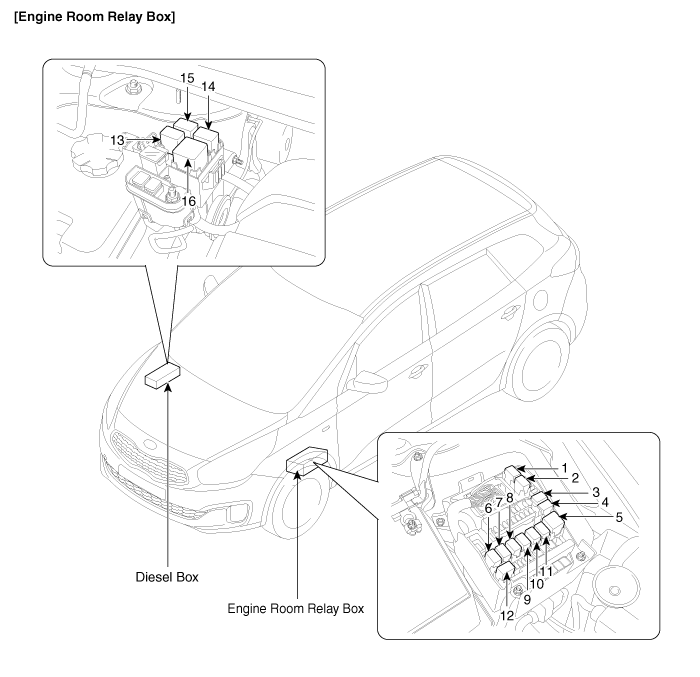

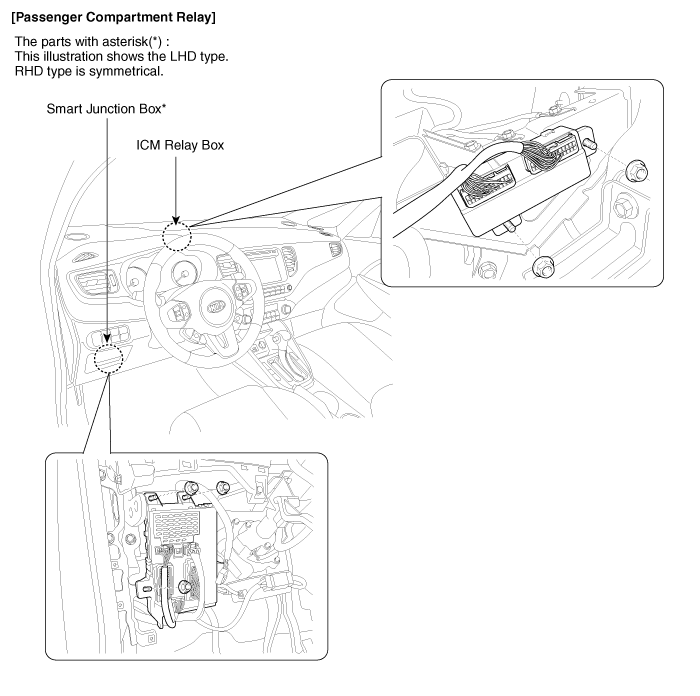

Component Location

1. Cooling fan relay (low)
2. Blower relay
3. IG2 relay
4. Deicer relay
5. Cooling fan relay (high)

6. Rear defogger relay
7. Power outlet relay
8. Head lamp washer relay
9. ACC relay
10. Start relay
11. IG1 relay

12. Fuel pump relay (GSL)/
Fuel heater relay (DSL)
13. PTC heater relay #1 (DSL)
14. PTC heater relay #2 (DSL)
15. PTC heater relay #3 (DSL)
16. Glow relay (DSL)
