Kia Carens: BCM (Body Control Module) / Components and components location
Kia Carens RP (2013-2018) Service Manual / Body Electrical System / BCM (Body Control Module) / Components and components location

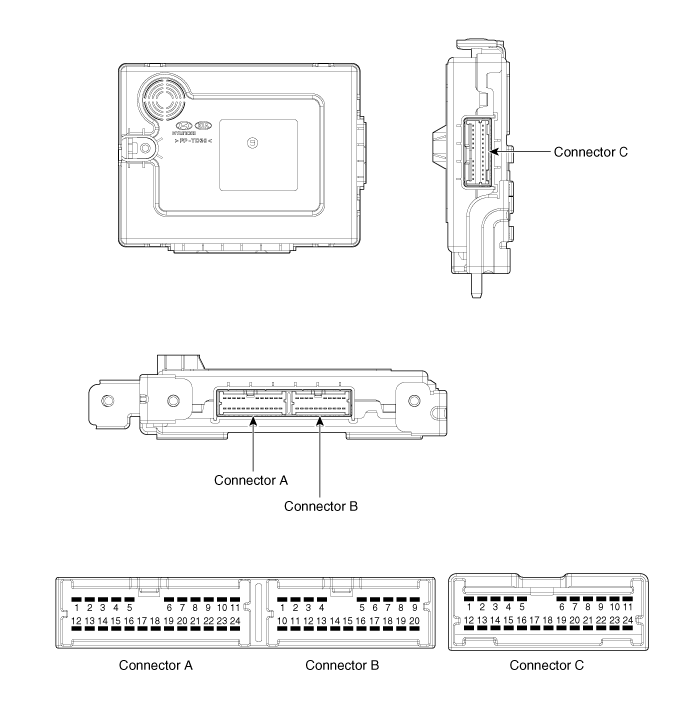

| Components |
Connector Pin Information
|
No. |
Connector A |
Connector B |
Connector C |
|
1 |
Battery (+) |
C CAN high |
Assistant seat belt indicator |
|
2 |
IGN 1 |
C CAN low |
PAS buzzer |
|
3 |
Auto light power |
B CAN high |
LIN siren |
|
4 |
Auto light sensor |
B CAN low |
ATM solenoid |
|
5 |
Wiper low switch |
Defogger switch |
Key solenoid |
|
6 |
K-line |
Head lamp high switch |
LIN PAS |
|
7 |
Rear wiper switch |
Auto light switch |
LIN wiper data |
|
8 |
Rear wiper intermittent switch |
Rear fog switch |
Rear wiper relay |
|
9 |
- |
Door unlock output |
Key hole illumination |
|
10 |
- |
Central door lock switch |
Driver door unlock relay |
|
11 |
Tail switch |
Auto light ground |
Door lock relay |
|
12 |
IGN 2 |
Crash input |
Security indicator |
|
13 |
ACC |
Key interlock switch |
PAS indicator |
|
14 |
Wiper intermittent volume |
PAS switch |
Safety power window enable |
|
15 |
Power ground |
Pas (option) |
Puddle lamp |
|
16 |
Wiper high switch |
Head lamp low switch |
Head lamp low signal |
|
17 |
Wiper mist switch |
Passing switch |
Room lamp |
|
18 |
Washer switch |
Front fog switch |
Foot lamp |
|
19 |
Wiper intermittent switch |
Rain sensor (option) |
Rear fog relay |
|
20 |
Rear washer switch |
- |
Head lamp washer |
|
21 |
Brake switch |
|
Sync signal |
|
22 |
Buzzer request |
Door indicator status |
|
|
23 |
Key IN switch |
Singal ground |
|
|
24 |
Sunroof state |
Door unlock relay |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating voltage
DC 9 ~ 16V
...
Schematic diagrams
Circuit Diagram
...
