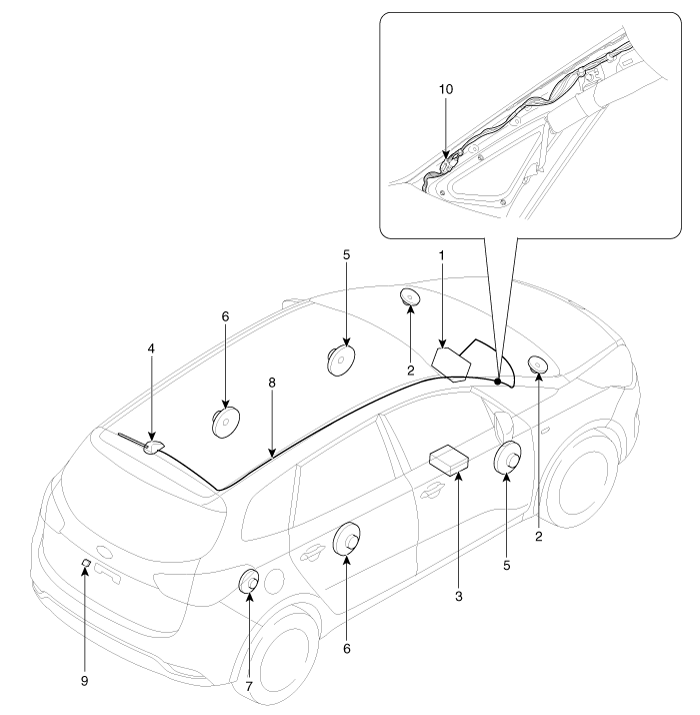

Components Location

1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. External amplifier
4. Roof antenna
5. Front door speaker
6. Rear door speaker
7. Subwoofer speaker
8. Antenna feeder cable
9. Back view camera
10. Feeder cable joint connector

Specifications
Specifications AVN Head Unit Item Specification Model 7 inch Internal amplifier (A Type) 8 inch External am ...

Schematic diagrams
System Block Diagram ...
