Kia Carens: Engine Control System / Accelerator Position Sensor (APS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Accelerator Position Sensor (APS) Schematic diagrams

Circuit Diagram

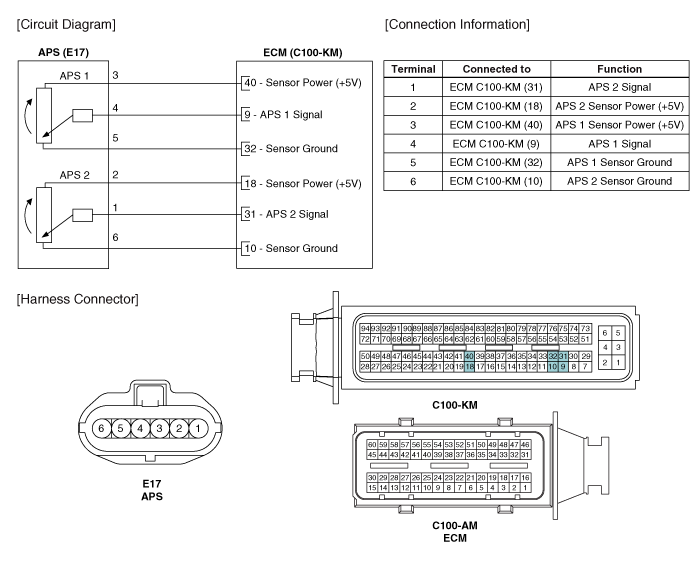

(M/T)

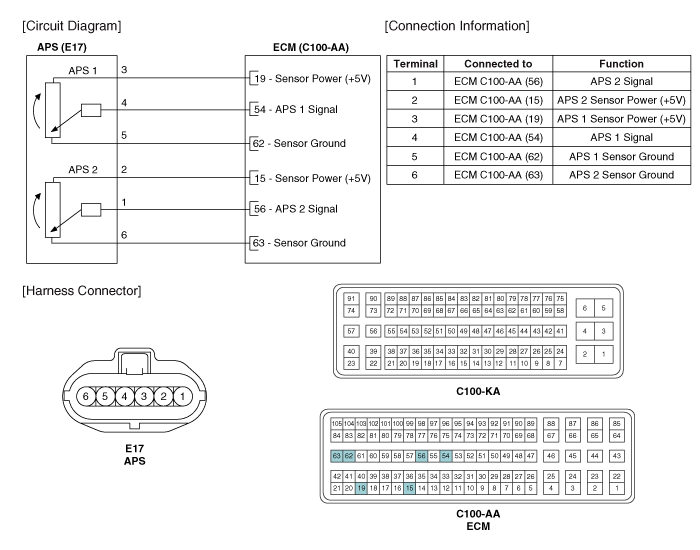

(A/T)

Accelerator Position Sensor (APS) Specifications
Specification Accelerator Position Output Voltage (V) [Vref=5V] APS1 APS2 C.T 0.7 ~ 0.8 ...

Accelerator Position Sensor (APS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measur ...
