Kia Carens: Blind Spot Detection system (BSD) / Blind Spot Detection Unit Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Blind Spot Detection system (BSD) / Blind Spot Detection Unit Schematic diagrams

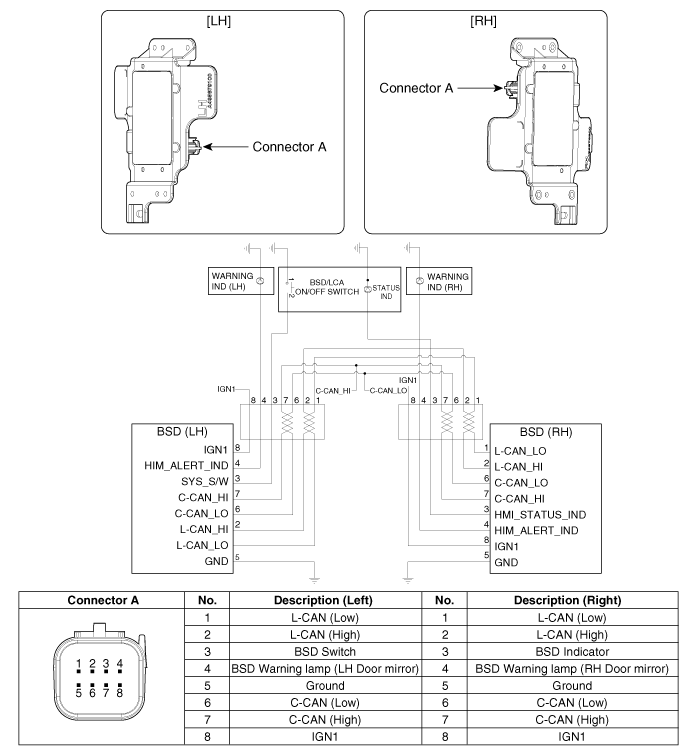

Circuit Diagram

Repair procedures
Diagnosis With KDS/GDS 1. BSD system defects can be quickly diagnosed by using the KDS/GDS. KDS/GDS operates actuator quickly to monitor input/output value and pe ...

Blind Spot Detection Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover. (Refer to Body - "Rear Bumper Co ...
