Kia Carens: Blind Spot Detection system (BSD) / Blind Spot Detection Switch Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Blind Spot Detection system (BSD) / Blind Spot Detection Switch Schematic diagrams

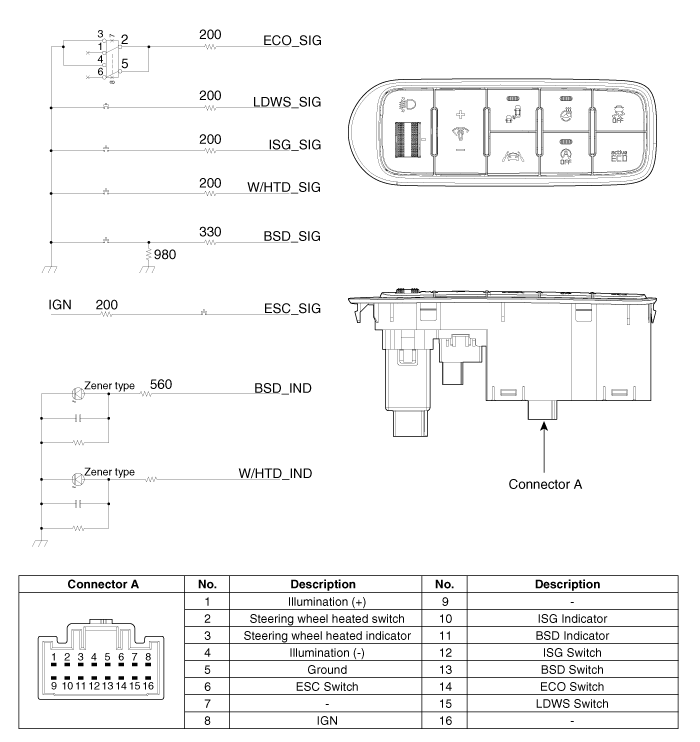

Circuit Diagram

Blind Spot Detection Radar Calibration Description and operation
Description To correctly sense vehicles on the neighboring lanes using the radar, the direction of the sensor and the direction of the vehicle must be aligned. This is the BSD ...

Blind Spot Detection Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad side cover [LH] (A ...
