Kia Carens: Remote keyless entry / Battery replacement

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Remote keyless entry / Battery replacement

A battery should last for several years, but if the transmitter or smart key is not working properly, try replacing the battery with a new one. If you are unsure how to use or replace the battery, we recommend that you contact an authorized Kia dealer.

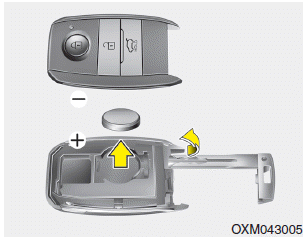

Type A

1. Insert a slim tool into the slot and gently pry open the transmitter cover.

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

3. Install the battery in the reverse order of removal.

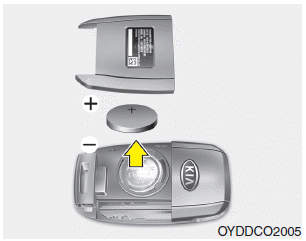

Type B

1. Pry open the rear cover of the smart key.

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

3. Install the battery in the reverse order of removal.

✽ NOTICE

CAUTION

An inappropriately disposed battery can be harmful to the environment and human health.

Dispose the battery according to your local law(s) or regulation.

Transmitter precautions
✽ NOTICE The transmitter will not work if any of following occur: The ignition key is in ignition switch. You exceed the operating distance limit (about 10 m [30 feet]). The battery in the trans ...
