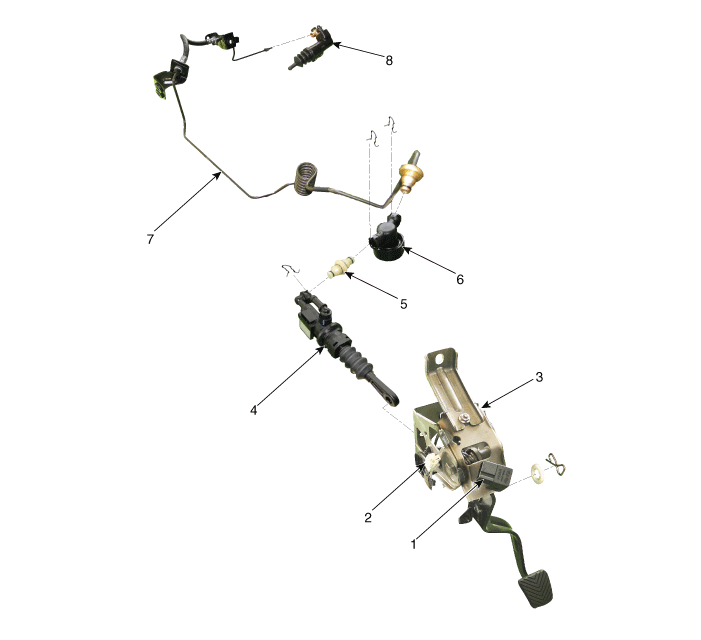

Components

1. Clutch switch
2. Ignition lock switch
3. Clutch pedal assembly
4. Master cylinder assembly
5. Connector (Only diesel)
6. Regulator (Only diesel)
7. Clutch tube
8. Clutch release cylinder

Clutch Release Cylinder
...

Repair procedures
Inspection 1. Check the clutch release cylinder for fluid leakage. 2. Check the clutch release cylinder boot for damage. ...
