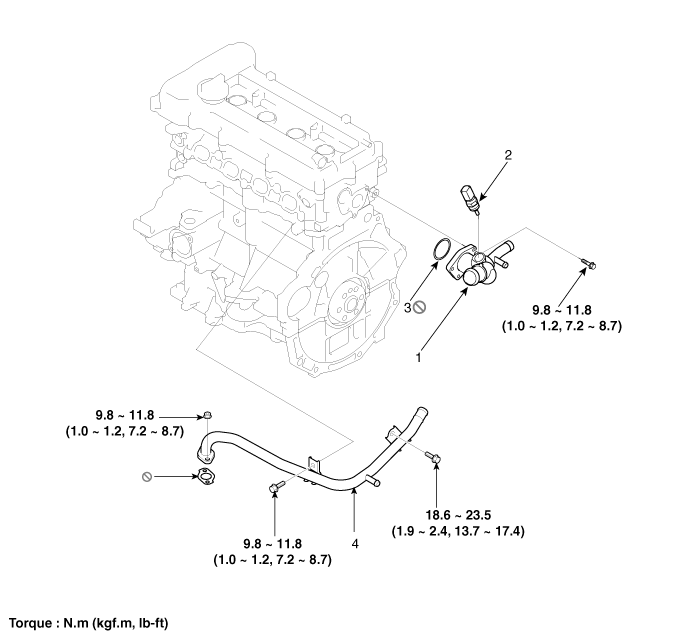

Components

1. Water temperature assembly
2. Water temperature sensor

3. Gasket
4. Heater pipe

Radiator Repair procedures

Inspection Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. ...

Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Drain the engine coolant. (Refer to Cooling System - "Coolant" ...
