Kia Carens: LCD Display / User Settings Mode

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / LCD Display / User Settings Mode

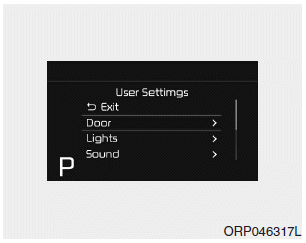

Description

On this mode, you can change setting of the doors, lamps, and so on.

WARNING

Do not adjust the User Setting while driving.You may lose your steering control and cause severe personal injury or accidents.

Driving Assist (if equipped)

• Rear Cross Traffic Alert (if equipped) : If this item is checked, the rear cross traffic alert function will be activated.

❈For more details, refer to “Blind Spot Detection System” in chapter 6.

• BSD (Blind Spot Detection) Sound (if equipped) : If this item checked, the blind spot detection sound will be activated.

❈For more details, refer to “Blind Spot Detection System” in chapter 6.

Door

Lights

Sound

Service interval

• Service Interval : On this mode, you can activate the service interval function with mileage (km or mi.) and period (months).
- Off : The service interval function will be deactivated.
- On : You can set the service interval (mileage and months).

Other Features

Language

Choose the language.

Service Mode
Service Interval Service in It calculates and displays when you need a scheduled maintenance service (mileage or days). If the remaining mileage or time reaches 1,500 km (1,500 mi.) or 30 days, “S ...

Turn By Turn Mode
This mode displays the state of the navigation. ...
