Kia Carens: Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve(UD/B_VFS) Components and components location

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve(UD/B_VFS) Components and components location

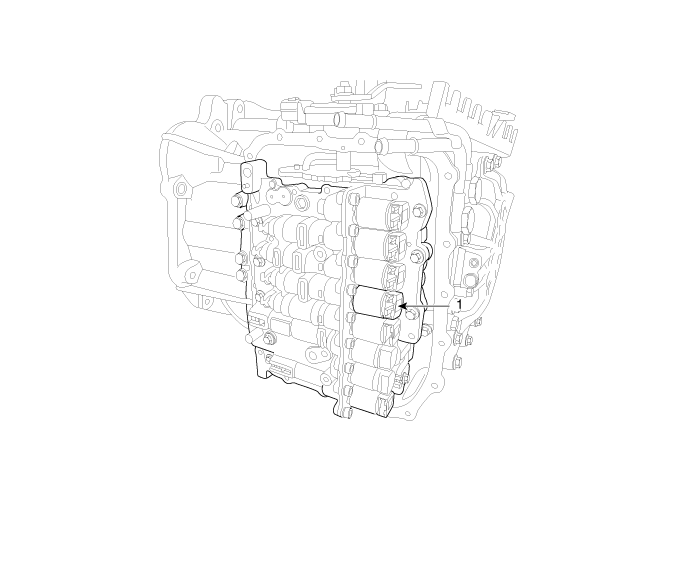

Component Location

1. Underdrive brake control solenoid valve (UD/B_VFS)
Underdrive Brake Control Solenoid Valve(UD/B_VFS) Specifications
Specification Item Specification Control type N/H (Normal High) "Control pressure kpa (kgf/cm², psi)" ...

Underdrive Brake Control Solenoid Valve(UD/B_VFS) Description and operation
Description • Underdrive brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable cur ...
