Kia Carens: Lighting / Turn signals and lane change signals

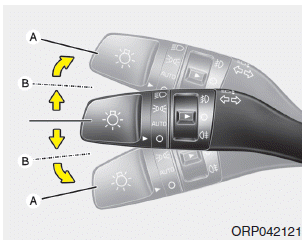

The ignition switch must be on for the turn signals to function. To turn on the
turn signals, move the lever up or down (A). Green arrow indicators on the instrument
panel indicate which turn signal is operating.
They will self-cancel after a turn is completed. If the indicator continues to
flash after a turn, manually return the lever to the OFF position.
To signal a lane change, move the turn signal lever slightly and hold it in position
(B). The lever will return to the OFF position when released.
If an indicator stays on and does not flash or if it flashes abnormally, one
of the turn signal bulbs may be burned out and will require replacement.
Pull the lever towards you. It will return to the normal position when released.
The headlight switch does not need to be on to use this flashing feature. ...
To activate an one-touch lane change function, move the turn signal lever slightly
and then release it. The lane change signals will blink 3, 5 or 7 times.
You can choose one-touch lane change blinki ...
