Kia Carens: ISG (Idle Stop & Go) System / Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Troubleshooting

Troubleshooting
If ISG function is not operated, check the related DTC codes. (Refer to DTC guide.)
If the ISG function is not operated in spite of no DTC, inspect the ISG system as below.
The GDS tool shows the current data about the ISG function for inspection.

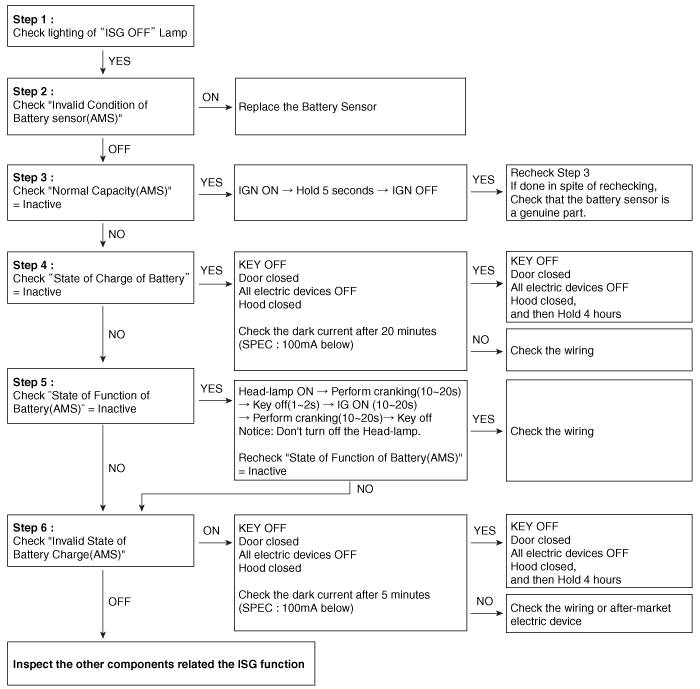

[Battery sensor and calibration value inspection]

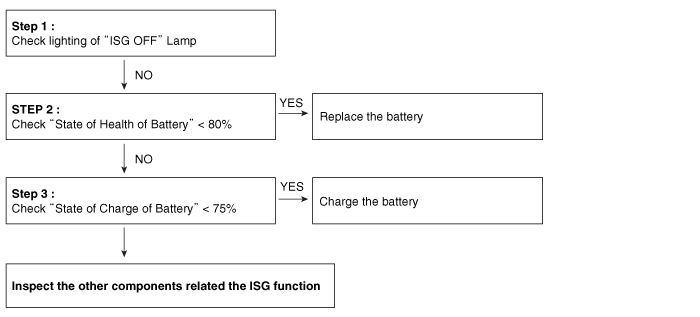

[Battery status inspection]

Description and operation
Description Idle Stop & Go (ISG) function automatically switches off the engine when the car is at a standstill and the clutch is not operated and starts it again as soon as ...

Repair procedures
Inspection 1. Remove the ISG switch from the switch assembly. 2. Check the continuity between the switch 5 and 12 terminals as the ISG ...
