Kia Carens: Trip computer / Trip A/B (for Type A cluster)
.png)

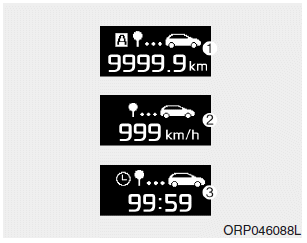

Tripmeter (1)
- The tripmeter is the total driving distance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
- To reset the tripmeter, press the RESET button
on the steering wheel for more
than 1 second when the tripmeter is displayed.
Average Vehicle Speed (2)
- The average vehicle speed is calculated by the total driving distance and
driving time since the last average vehicle speed reset.
- Speed range: 0 ~ 240 km/h or 0 ~ 160 MPH
- To reset the average vehicle speed, press the RESET button on the steering
wheel for more than 1 second when the average vehicle speed is displayed.
✽ NOTICE
- The average vehicle speed is not displayed if the driving distance has
been less than 50 meters (0.03 miles) or the driving time has been less than
10 seconds since the ignition switch or Engine Start/Stop button was turned
to ON.
- Even if the vehicle is not in motion, the average vehicle speed keeps
going while the engine is running.
Elapsed Time (3)
- The elapsed time is the total driving time since the last elapsed time reset.
- Time range (hh:mm): 00:00 ~ 99:59
- To reset the elapsed time, press the RESET button
on the steering wheel for more
than 1 second when the elapsed time is displayed.
✽ NOTICE
Even if the vehicle is not in motion, the elapsed time keeps going while the
engine is running.
Description
The trip computer is a microcomputer- controlled driver information system that
displays information related to driving.
✽ NOTICE
Some driving information stored in the trip computer (f ...
Distance To Empty (1)
The distance to empty is the estimated distance the vehicle can be driven
with the remaining fuel.
- Distance range: 1 ~ 999 km or 1 ~ 999 mi.
If the estimated distance is ...
