Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Front Seat / Components and components location

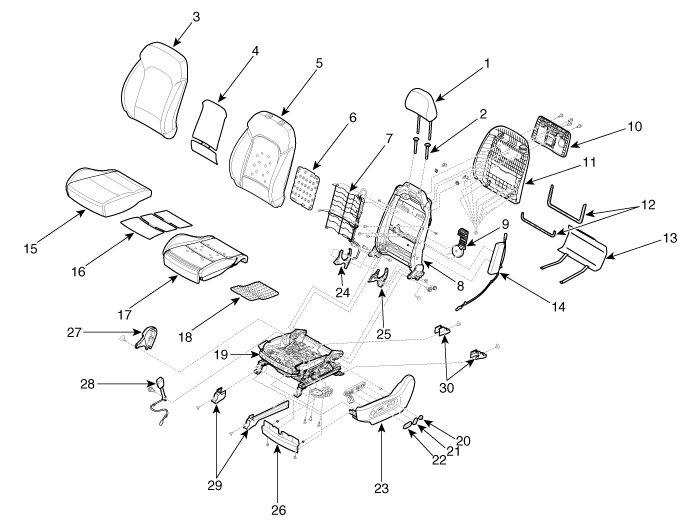

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back cover
4. Front seat back heater
5. Front seat back pad
6. Front seat back vent mat
7. Front seat back power lumbar
8. Front seat back frame assembly
9. Front seat back blower
10. Front seat back table
11. Front seat back board
12. Front seat back pocket hosing
13. Front seat back skirt
14. Side airbag module assembly
15. Front seat cushion cover
16. Front seat cushion heater
17. Front seat cushion pad
18. Front seat cushion vent mat
19. Front seat cushion frame assembly
20. Front seat power lumbar support switch
21. Front seat knob recliner
22. Front seat knob height & track
23. Front seat shield outer cover
24. Front seat inside cover [RH]
25. Front seat inside cover [LH]
26. Front seat shield front cover
27. Front seat shield inner cover
28. Front seat belt buckle
29. Front seat foot front cover
30. Front seat foot rear cover

Front Seat

Front Seat Assembly Components and components location
Component Location 1. Front seat assembly ...
