Description

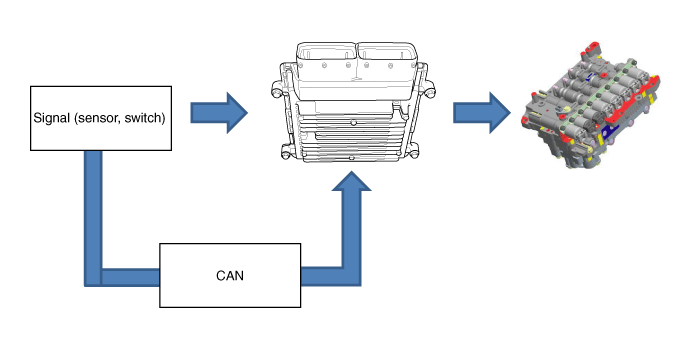

The module receives and processes signals from various sensors and implements a wide range of transaxle controls to ensure optimal driving conditions for the driver.
Functions
Monitors the vehicle's operating conditions to determine the optimal gear setting.
Performs a gear change if the current gear setting differs from the identified optimal gear setting.
Determines the need for torque converter clutch activation and engages the clutch accordingly.
Calculates the optimal line pressure level by constantly monitoring the torque level and adjusts the pressure accordingly.
Diagnoses the faults and failures for automatic transaxle.
Operation

Components and components location
Components Location 1. Automatic transaxle 2. Inhibitor switch 3. Engine Control Module(ECM) 4. Valve body cover 5. Solenoid valve connect 6. Oil t ...

Transaxle Control Module (TCM) Schematic diagrams
TCM connector and terminal function TCM Terminal Function Connector [A] Pin Description Pin Description ...
