Kia Carens: Automatic Transaxle Control System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Components and components location

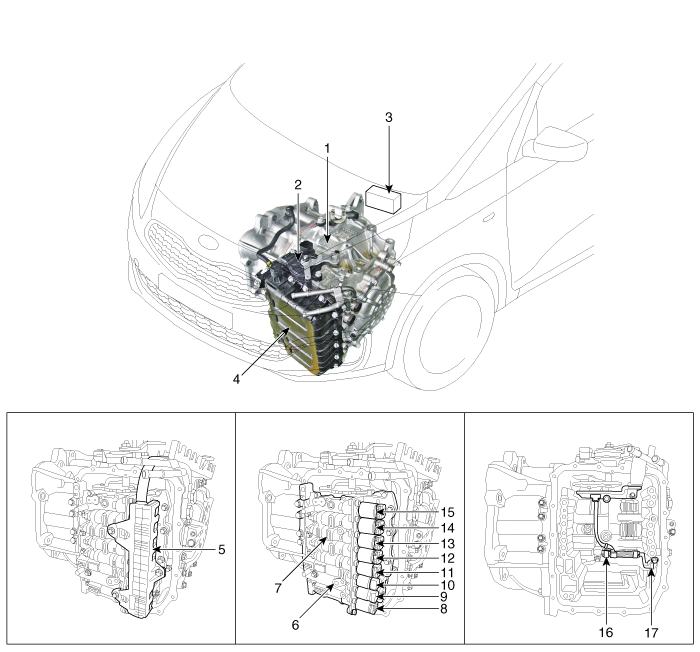

Components Location

1. Automatic transaxle
2. Inhibitor switch
3. Engine Control Module(ECM)
4. Valve body cover
5. Solenoid valve connect
6. Oil temperature sensor
7. Valve body assembly
8. Line Pressure Control Solenoid Valve
9. SS-A Solenoid Valve(ON/OFF)
10. SS-B Solenoid Valve(ON/OFF)
11. Overdrive Clutch Control Solenoid Valve(OD/C)
12. Underdrive Brake Control Solenoid Valve(UD/B)
13. 26 Brake Control Solenoid Valve(26/B)
14. 35R Clutch Control Solenoid Valve(35R/C)
15. Torque Converter Control Solenoid Valve (T/CON)
16. Output speed sensor
17. Input speed sensor

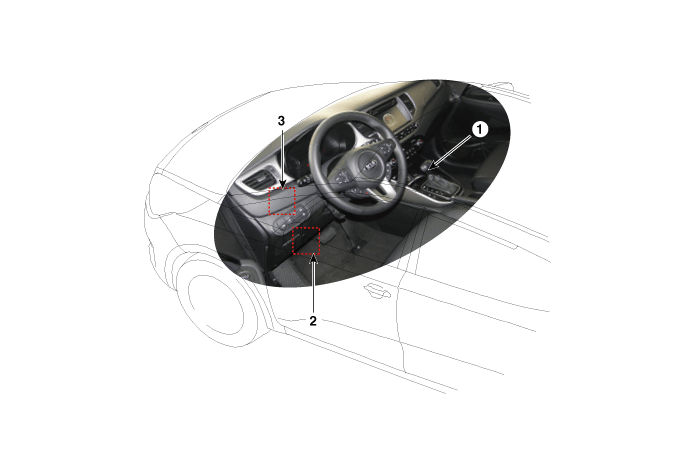

1. Shift lever
2. Data Link Connector (DLC)
3. Transaxle Control Module (TCM)
