Kia Carens: Button Engine Start System / Start/Stop Button Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button Components and components location

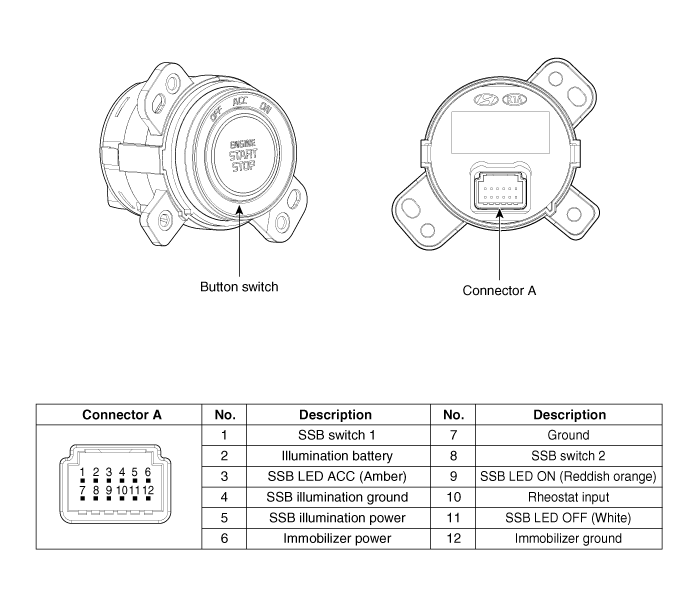

Component

Schematic diagrams

Circuit Diagram (1) Circuit Diagram (2) ...

Start/Stop Button Repair procedures

Removal 1. Disconnect the negative(-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad center garnish (A). ...
