Kia Carens: Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Schematic diagrams

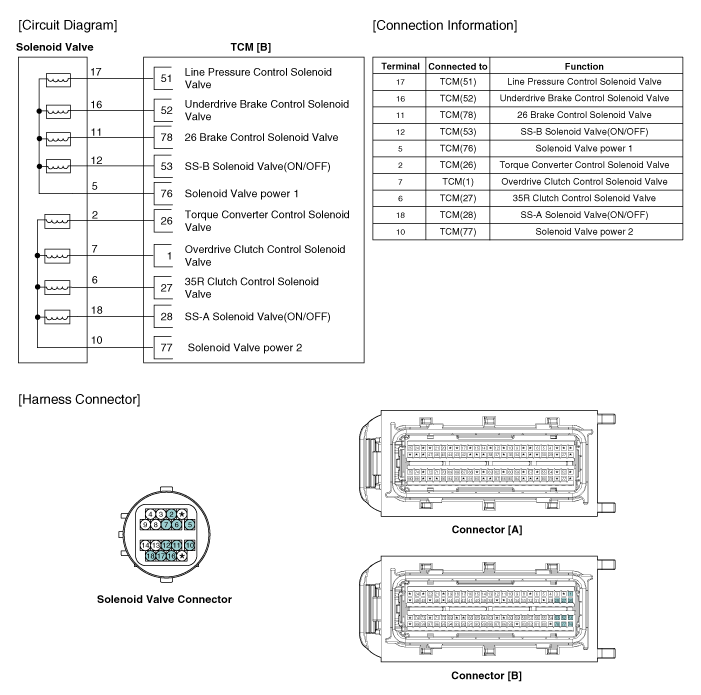

Circuit Diagram

SS-B Solenoid Valve(ON/OFF) Description and operation
Description • SS-B solenoid valve is ON/OFF type. • When TCM supplies power to solenoid valve, speed range is changed by operat ...

SS-B Solenoid Valve(ON/OFF) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Clea ...
