Special Service Tools
Tool Name / Number
Illustration
Description
Engine support fixture (bar)
09200-3N000

Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-A3100) adapter (09200-4X000)
Engine support fixture (supporter)
09200-A3100

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000) and adapter (09200-4X000)
Engine support fixture (adapter)
09200-4X000

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000) and supporter (09200-A3100)
Oil seal installer
A: 09431-26100 (Installer)
B: 09231-H1100 (Handle)

Used for installing differential oil seal

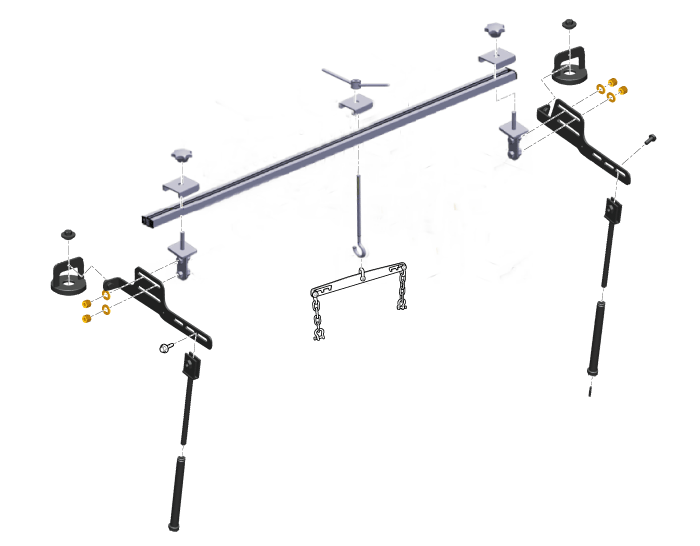

※ Engine Support Fixture Special Tool Assembly Drawing
