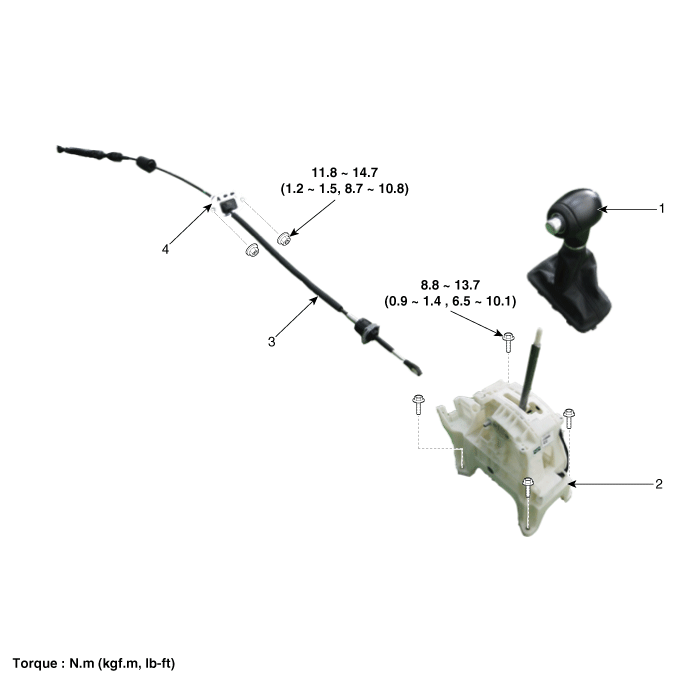

Components

1. Shift lever knob
2. Shift lever assembly

3. Shift cable assembly
4. Retainer

Inhibitor Switch Repair procedures

Inspection Inspect the following items by referring to inspection flow chart. (Refer to Inhibitor Sw ...

Shift Lever Repair procedures

Removal 1. Remove the floor console assembly. (Refer to Body “Floor Console”) 2. Disconnect the control cable (A). ...
