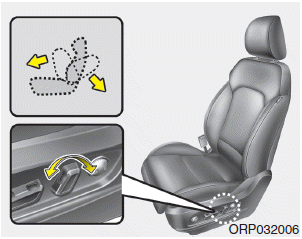

Kia Carens: Front seat adjustment - power / Seatback angle

Forward and rearward

1. Push the control switch forward or rearward to move the seat to the desired position. 2. Release the switch once the seat reaches the desired position. ...

Seat cushion height

1. Pull the front portion of the control switch up to raise or down to lower the front part of the seat cushion. Pull the rear portion of the control switch up to raise or down to lower the seat cu ...
