Kia Carens: Front seat adjustment - power / Seat cushion height

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Front seat adjustment - manual / Front seat adjustment - power / Seat cushion height

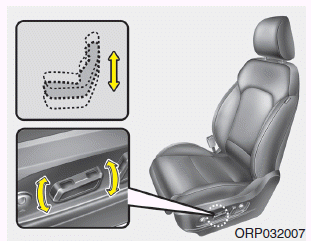

1. Pull the front portion of the control switch up to raise or down to lower the front part of the seat cushion. Pull the rear portion of the control switch up to raise or down to lower the seat cushion.

2. Release the switch once the seat reaches the desired position.

Seatback angle
1. Push the control switch forward or rearward to move the seatback to the desired angle. 2. Release the switch once the seat reaches the desired position. ...

Lumbar support
The lumbar support can be adjusted by pressing the lumbar support switch on the side of the seat. 1. Press the front portion of the switch to increase support, or the rear portion of the switch, to ...
