Kia Carens: Cruise Control System / Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Cruise Control System / Schematic diagrams

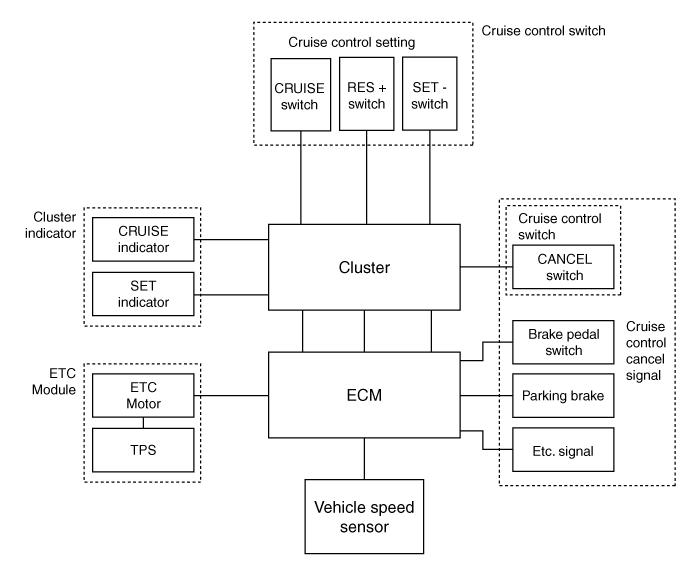

System Block Diagram

Component Parts And Function Outline
Component part
Function
Vehicle-speed sensor
Converts vehicle speed to pulse.
ECM
Receives signals from sensor and control switches.
Cruise control indicator
Illuminate when CRUISE switch is ON (Built into cluster)
Cruise Control switches
ON/OFF switch
Switch for automatic speed control power supply.
RES+ switch
Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch)
SET- switch
Cancel switches
Cancel switch
Sends cancel signals to ECM.
Brake-pedal switch
Transaxle range switch (A/T)
ETS motor
Regulates the throttle valve to the set opening by ECM.

* ETC System : Electronic Throttle Control System
Cruise Control System
...

Description and operation
Cruise Control The cruise control system is engaged by the cruise "ON/OFF" main switch located on right of steering wheel column. The system has the capability to cruise, ...
