Kia Carens: AVN System / Roof Antenna Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / AVN System / Roof Antenna Components and components location

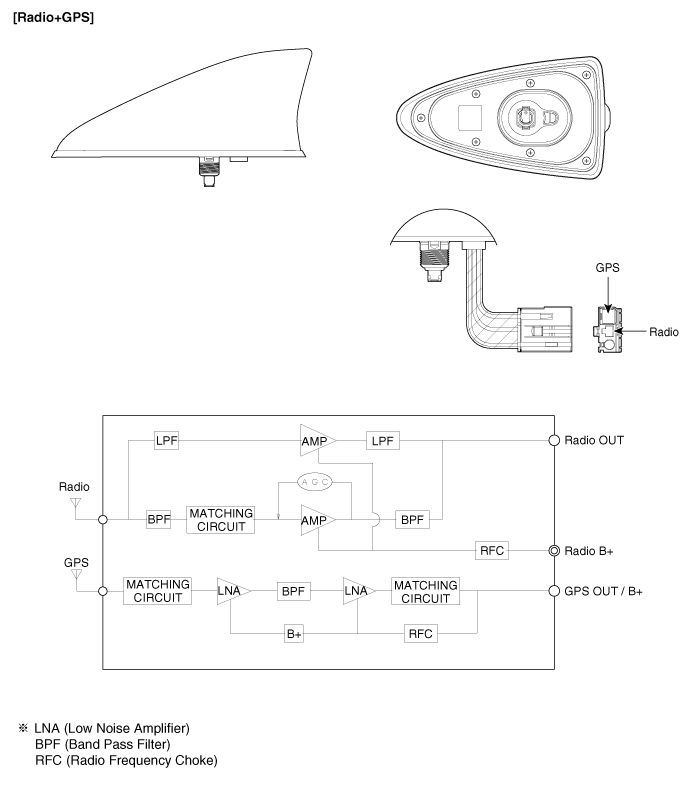

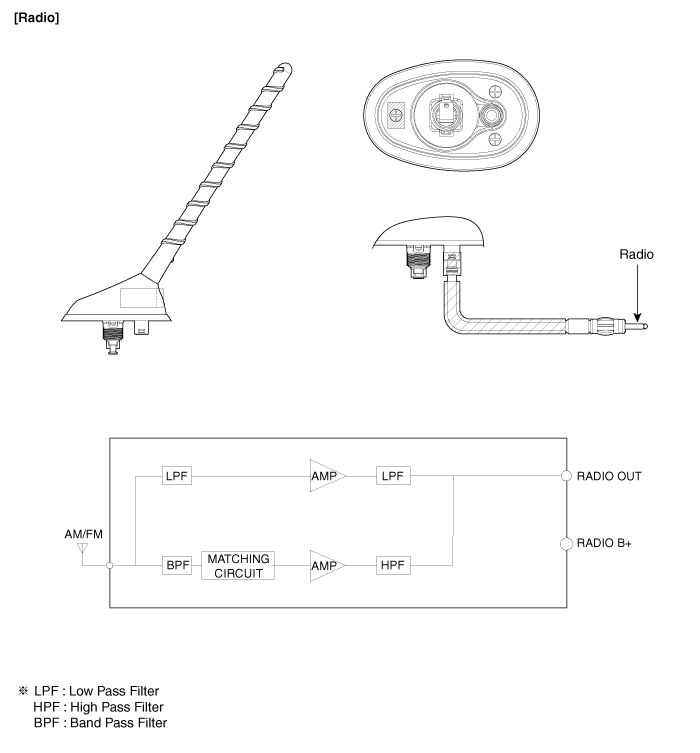

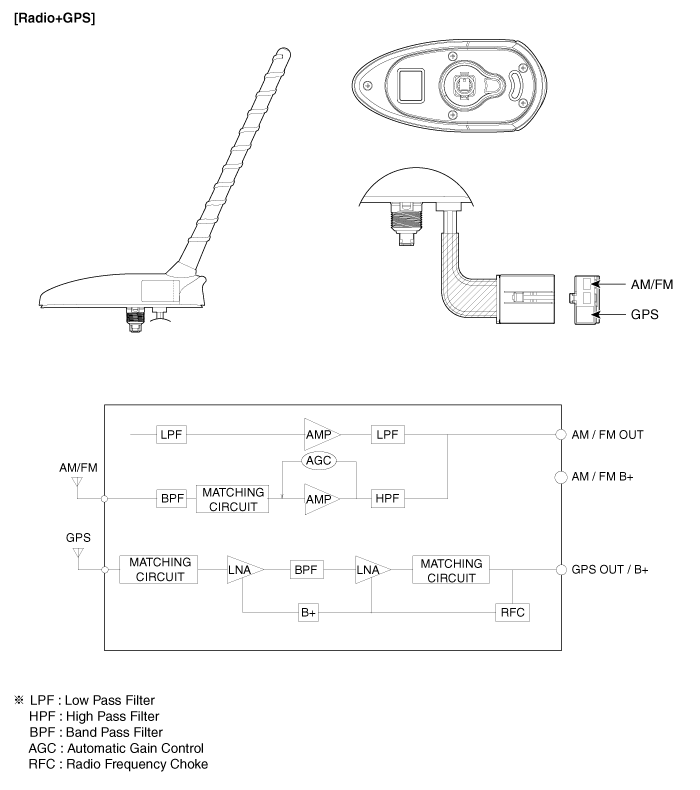

Components

External Amplifier Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Loosen loosening the mounting nuts. 3. Remove ...

Roof Antenna Repair procedures
Removal 1. Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly") 2. Disconnect the roof antenna connector ...
