Kia Carens: Tail Gate / Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Tail Gate / Repair procedures

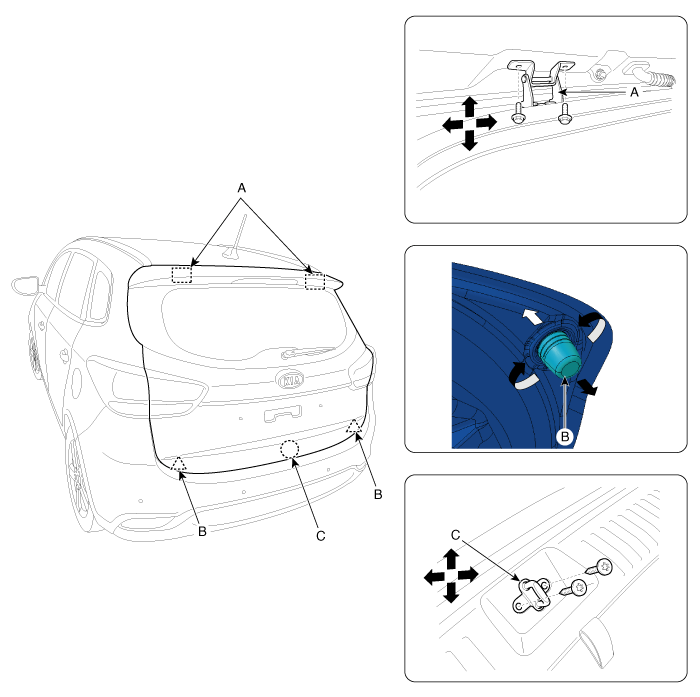

Adjustment

1.	After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up or down, or right or left.

2.	Adjust the tail gate height by turning the tail gate overslam bumpers (B).

3.	After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up or down, or right or left.

Tail Gate

...

Tail Gate Assembly Components and components location

Component Location 1. Tail gate assembly ...
