Kia Carens: If you have a flat tire (with tire mobility kit) / Components of the Tire Mobility Kit (TMK)

Kia Carens RP (2013-2018) Owners Manual / What to do in an emergency / If you have a flat tire (with tire mobility kit) / Components of the Tire Mobility Kit (TMK)

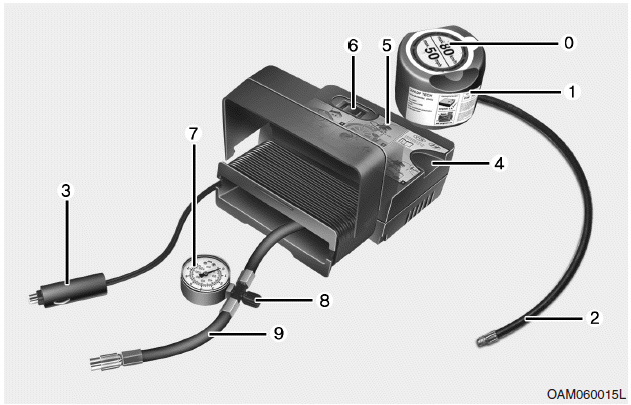

0. Speed restriction label
1. Sealant bottle and label with speed restriction
2. Filling hose from sealant bottle to wheelv 3. Connectors and cable for the power outlet direct connection
4. Holder for the sealant bottle
5. Compressorv 6. On/off switch
7. Pressure gauge for displaying the tire inflation pressure
8.Screw cap for reducing tire inflation pressure
9.Hose to connect compressor and sealant bottle or compressor and wheel

Connectors, cable and connection hose are stored in the compressor housing.

WARNING - Expired sealant

Do not use the tire sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING - Sealant

Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

Introduction

With the Tire Mobility Kit (TMK) you stay mobile even after experiencing a tire puncture. The system of compressor and sealing compound effectively and comfortably seals most punctures in a passeng ...

Using the Tire Mobility Kit (TMK)

1. Detach the speed restriction label (0) from the sealant bottle (1), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too ...
