Kia Carens: Remote keyless entry / Remote keyless entry system operations
.png)

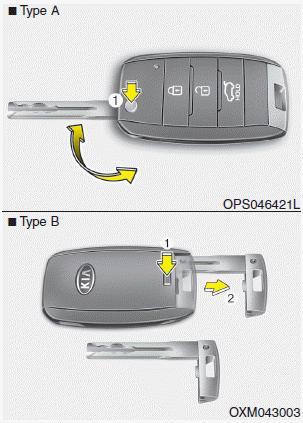

Type A
- To unfold the key, press the release button (1) then the key will unfold
automatically.
- To fold the key, fold the key manually while pressing the release button.
CAUTION
Do not fold the key without pressing the release button. This may damage the
key.
Type B
- To remove the mechanical key, press and hold the release button (1) and
remove the mechanical key (2).
- To reinstall the mechanical key, put the key into the hole and push it until
a click sound is heard.

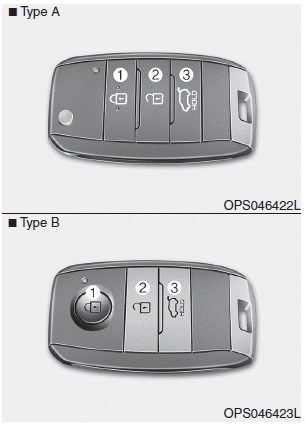

Lock (1)
.png)
1. Close all doors.
2. Press the lock button.
3. The hazard warning light will blink once to indicate that all doors are locked
(the engine hood and tailgate must be closed). Also, the outside rearview mirror
will automatically fold if the outside rearview mirror folding switch (Type B) is
in the AUTO position (if equipped).
✽ NOTICE
The doors will not lock if any door is opened.
Unlock (2)
1. Press the unlock button.
2. The hazard warning lights will blink twice to indicate that all doors are
unlocked. Also, the outside rearview mirror will automatically unfold if the outside
rearview mirror folding switch (Type B) is in the AUTO position (if equipped).
✽ NOTICE
After unlocking all doors, the doors will lock and the outside rearview mirror
will unfold if the outside rearview mirror folding switch (Type B) is in the AUTO
position (if equipped) unless a door is opened within 30 seconds.
1. Press the tailgate unlock button for more than 1 second.
2. The hazard warning light will blink twice to indicate the tailgate is unlocked.
✽ NOTICE
After unlocking the tailgate, the tailgate w ...
