Kia Carens: Features of your vehicle / Rearview camera
.png)

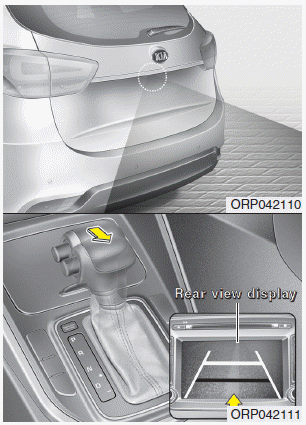

The rearview camera will activate when the back-up light is ON with the ignition
switch ON and the shift lever in the R (Reverse) position.
This system is a supplemental system that shows behind the vehicle through the
navigation monitor or audio display while backing-up.
WARNING
- This system is a supplementary function only. It is the responsibility
of the driver to always check the inside/outside rearview mirror and the area
behind the vehicle before and while backing up because there is a dead zone
that can't see through the camera.
- Always keep the camera lens clean. If lens is covered with foreign matter,
the camera may not operate normally.
If there is a problem with the system, when the system is turned on, the
above message will appear. Also, the indicator on the button will not light
up and a beep sound will be heard 3 times.
...
