Component Location

[Second row seat belt buckle]

(Except Europe and Australia)

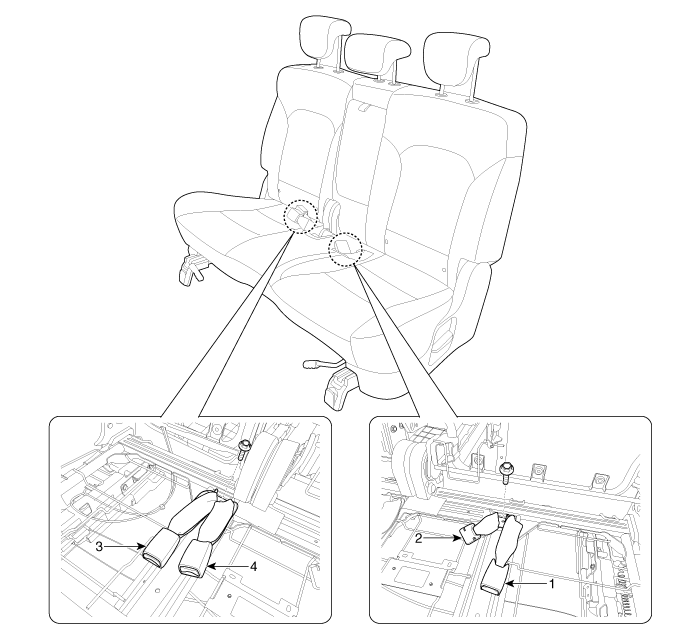

[5-seat vehicle]

1. Second row seat belt buckle [LH]
2. Second row seat belt mini buckle

3. Second row seat belt buckle [RH]
4. Second row center seat belt buckle

(Except Europe and Australia)

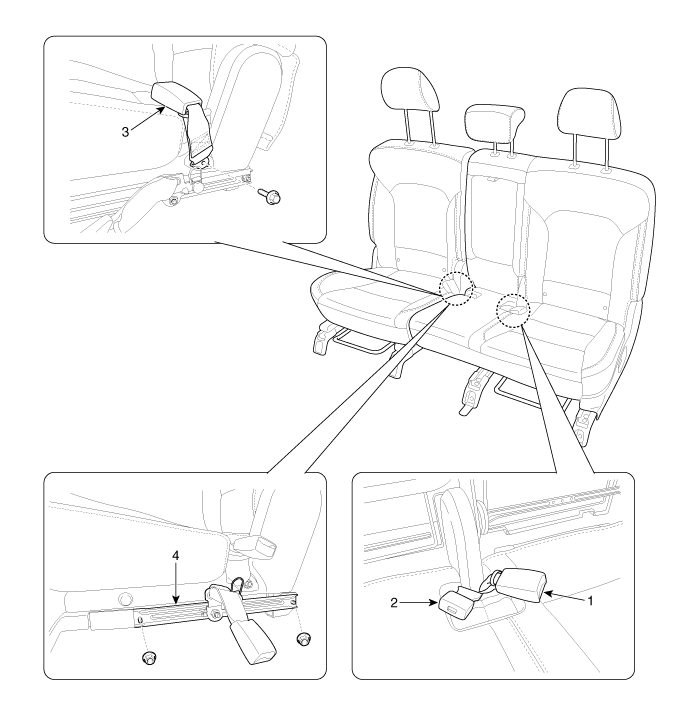

[7-seat vehicle]

1. Second row seat belt buckle [LH]
2. Second row seat belt mini buckle

3. Second row seat belt buckle [RH]
4. Second row center seat belt buckle rail

(For Europe and Australia)

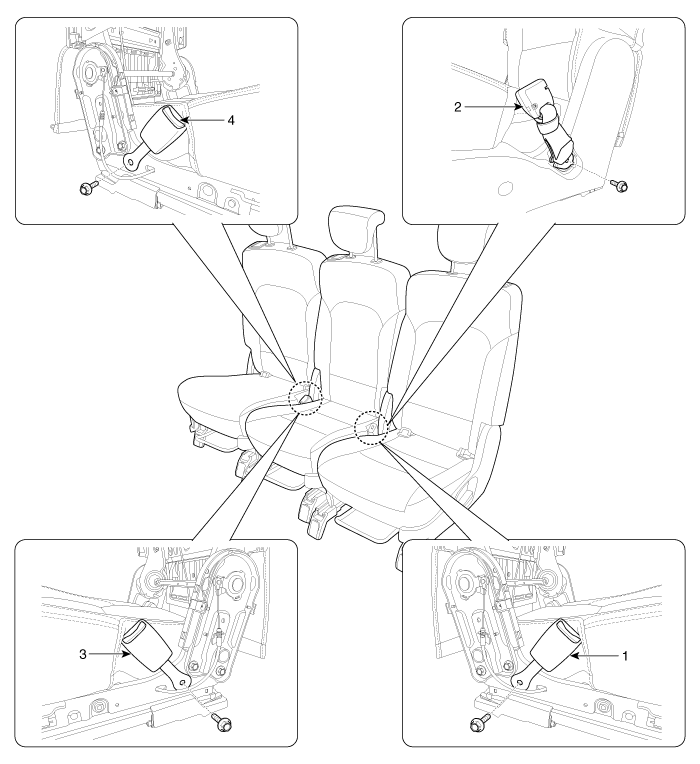

[5/7-seat vehicle]

1. Second row seat belt buckle [LH]
2. Second row seat belt mini buckle

3. Second row seat belt buckle [RH]
4. Second row center seat belt buckle

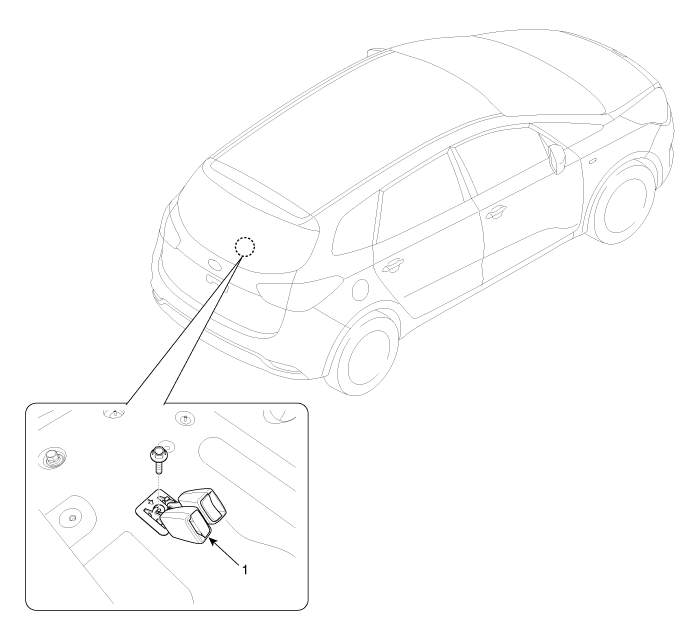

[Third row seat belt buckle]

1. Third row seat belt buckle [LH, RH]

Rear Center Seat Belt Retractor Repair procedures

Replacement • When installing the belt, make sure not to damage the retractor. ...

Rear Seat Belt Buckle Repair procedures

Replacement [Second row seat belt buckle] (Except Europe and Australia) [5-seat vehicle] 1. Remove the second row seat assembly. (Refer ...
