Kia Carens: Rear Suspension System / Rear Coil Spring Components and components location

Kia Carens RP (2013-2018) Service Manual / Suspension System / Rear Suspension System / Rear Coil Spring Components and components location

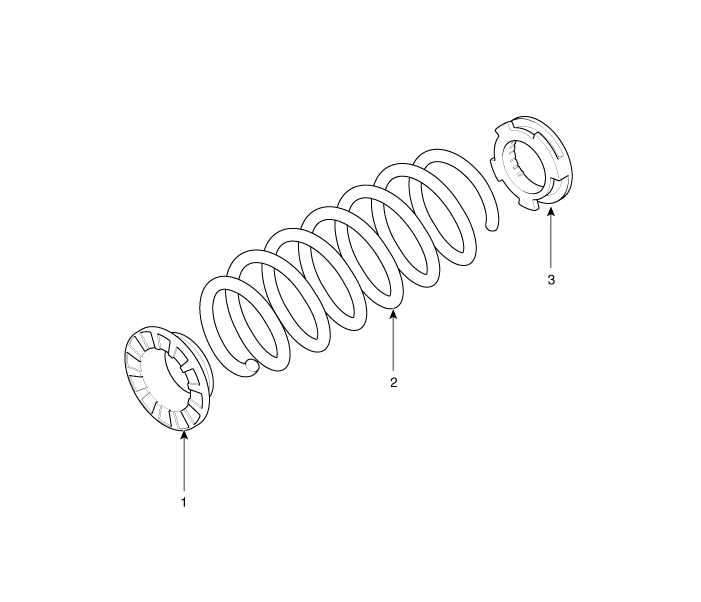

Components

1. Spring upper pad
2. Spring
3. Spring lower pad

Rear Shock Absorber Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel ...

Rear Coil Spring Repair procedures
Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel ...
