Kia Carens: Windshield Wiper/Washer / Rain Sensor Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Windshield Wiper/Washer / Rain Sensor Schematic diagrams

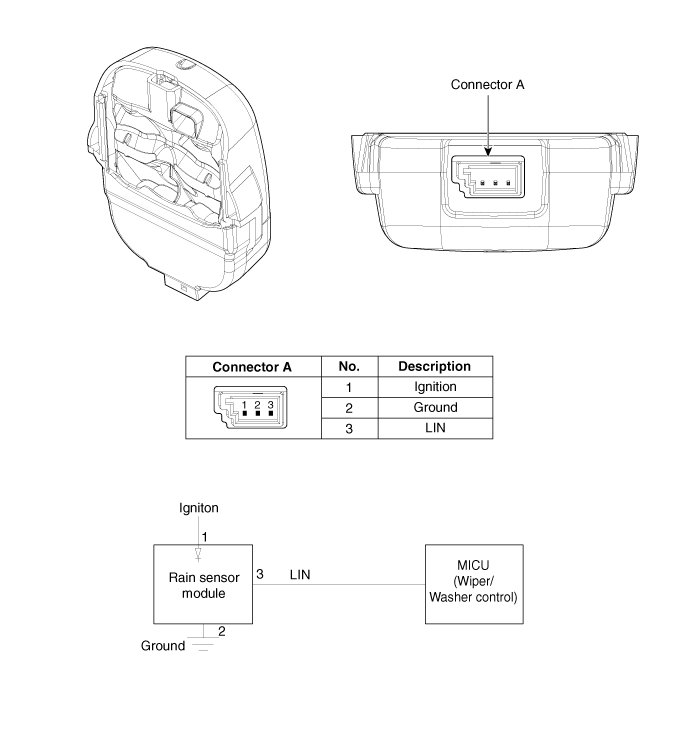

Circuit Diagram

Front Washer Motor Repair procedures
Inspection Front and Rear Washer Motor 1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water. ...

Rain Sensor Description and operation
Description The Rain sensing windshield wiper system is a wiper system that, in addition to providing normal wiper functions off, mist, manual low speed, manual high speed, and w ...
