Kia Carens: Power Windows / Power Window Motor Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Windows / Power Window Motor Schematic diagrams

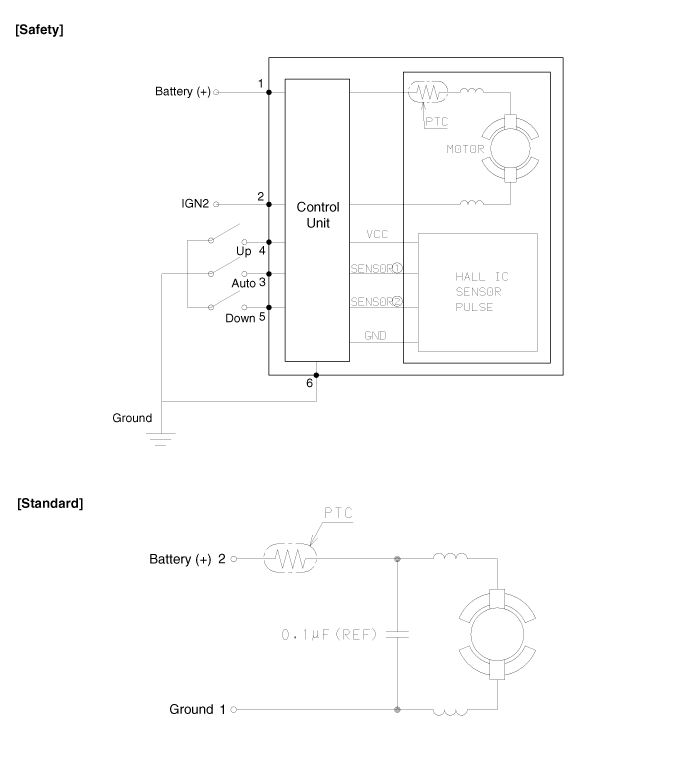

Circuit Diagram
