Kia Carens: Brake system / Parking brake - Hand type
Applying the parking brake

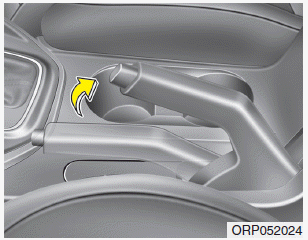

To engage the parking brake, first apply the foot brake and then without pressing
the release button in, pull the parking brake lever up as far as possible. In addition
it is recommended that when parking the vehicle on a gradient, the shift lever should
be positioned in the appropriate low gear for manual transaxle vehicles or in the
P (Park) position for automatic transaxle / dual clutch transmission vehicles.
CAUTION
- Driving with the parking brake applied will cause excessive brake pad
(or lining) and brake rotor wear.
- Do not operate the parking brake while the vehicle is moving except in
an emergency situation. It could damage the vehicle system and make endanger
driving safety.
Releasing the parking brake

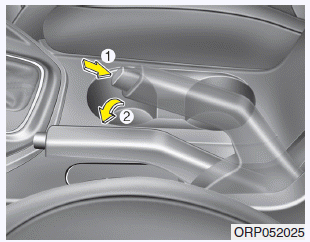

To release the parking brake, first apply the foot brake and pull up the parking
brake lever slightly. Secondly press the release button (1) and lower the parking
brake lever (2) while pressing the button.
WARNING
- To prevent unintentional movement when stopped and leaving the vehicle,
do not use the shift lever instead of the parking brake. Set the parking brake
AND make sure the shift lever is securely positioned in 1st (First) gear or
R (Reverse) for manual transaxle equipped vehicles and in P (Park) for automatic
transaxle / dual clutch transmission equipped vehicles.
- Never allow anyone who is unfamiliar with the vehicle to touch the parking
brake. If the parking brake is released unintentionally, serious injury may
occur.
- All vehicles should always have the parking brake fully engaged when
parking to avoid inadvertent movement of the vehicle which can injure occupants
or pedestrians.
Check the brake warning light by turning the ignition switch ON (do not start
the engine). This light will illuminate when the parking brake is applied with the
ignition switch in the START or ON position.
Before driving, be sure the parking brake is fully released and the brake warning
light is off.
If the brake warning light remains on after the parking brake is released while
the engine is running, there may be a malfunction in the brake system. Immediate
attention is necessary.
If at all possible, cease driving the vehicle immediately. If that is not possible,
use extreme caution while operating the vehicle and only continue to drive the vehicle
until you can reach a safe location or repair shop.
Your vehicle has power-assisted brakes that adjust automatically through normal
usage.
In the event that the power-assisted brakes lose power because of a stalled engine
or some other reason, you ca ...
