Kia Carens: Automatic transaxle operation / Paddle shifter
.png)

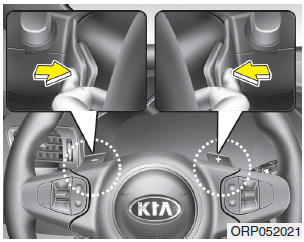

The paddle shifter is available when the shift lever is in the D position or
the sports mode.
With the shift lever in the D position
The paddle shifter will operate when the vehicle speed is more than 10km/h.
Pull the [+] or [-] paddle shifter once to shift up or down one gear and the
system changes from automatic mode to manual mode.
When the vehicle speed is lower than 10km/h, if you depress the accelerator pedal
for more than 5 seconds or if you shift the shift lever from D (Drive) to sports
mode and shift it from sports mode to D (Drive) again, the system changes from manual
mode to automatic mode.
With the shift lever in the sports mode
Pull the [+] or [-] paddle shifter once to shift up or down one gear.
✽ NOTICE
If you pull the [+] and [-] paddle shifters at the same time, you cannot shift
the gear.
