Kia Carens: Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Signal Waveform

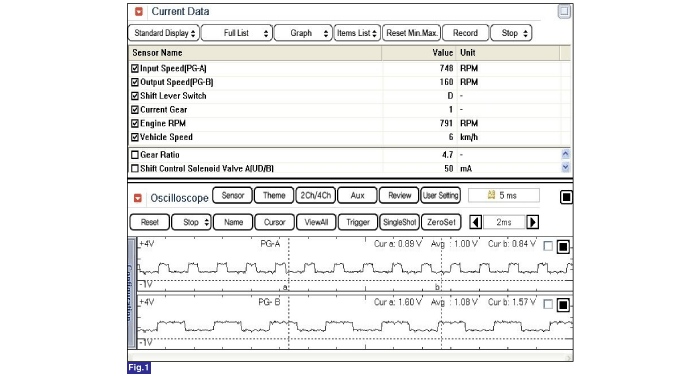

Fig 1) Input/Output speed sensor at low speed

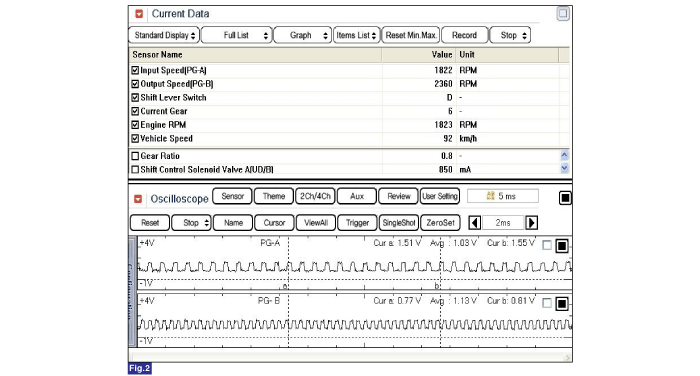

Fig 2) Input/Output speed sensor at high speed
Output Speed Sensor Schematic diagrams
Circuit Diagram ...

Output Speed Sensor Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air clea ...
