Kia Carens: Driving your vehicle / Speed Limit Information Function (SLIF)
.png)
The system displays the information of speed limit and no passing restriction

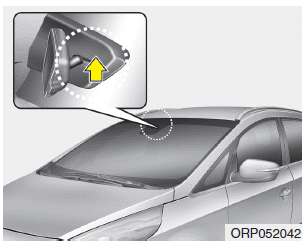

to the driver in both the instrument cluster and navigation screen. SLIF detects
traffic signs with camera system attached on the top of the windscreen.
The SLIF also utilizes the navigation information to display the speed limit
information.
WARNING
- Speed Limit Information Function is only an aid and is not always able
to correctly display speed limits and overtaking restrictions.
- The driver always keeps the responsibility not to exceed the maximum
allowed speed
- Do not place any accessories, stickers or tint the windshield near the
rearview mirror.
- The system detects traffic signs and displays speed limit information
by a camera therefore, if traffic signs are hard to detect, the system may not
work properly. Please refer to "Driver's Attention".
- Do not remove any LKAS parts or apply impact.
- Do not place objects on the dashboard that reflects light such as mirrors,
white paper, etc. The system may malfunction if the sunlight is reflected.
- The system is not available in all countries.
Press the speed limit switch
once again.
Press the cruise switch (If you press cruise switch, the cruise system will
turn on).
Turn the ignition off.
If you press the CANCEL switch once, th ...
SLIF Setting method :
Cluster User Settings → Driving Assist → SLIF (Speed Limit Information Function)
The information of speed limit and no passing restriction will appear on
the cluster us ...
