Kia Carens: Lubrication System / Oil Pan Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Lubrication System / Oil Pan Components and components location

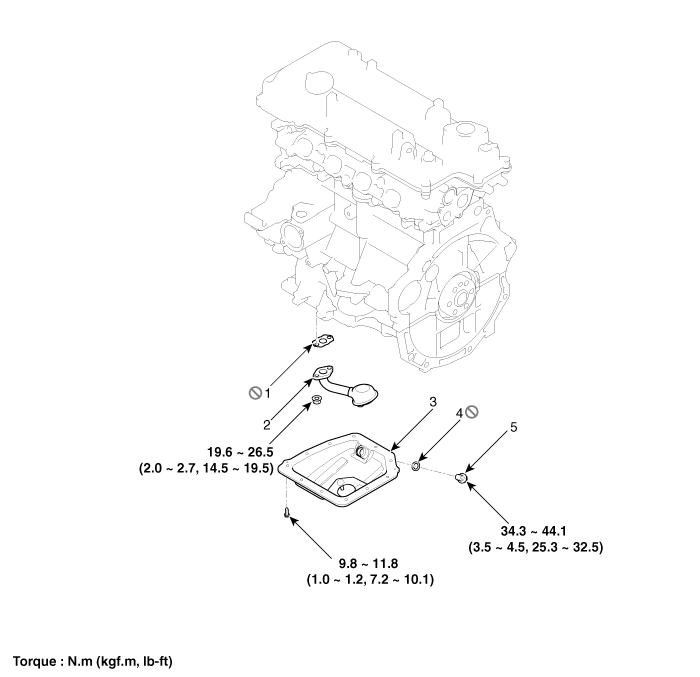

Components

1. Gasket
2. Oil screen
3. Oil pan

4. Drain plug gasket
5. Drain plug

Oil Pressure Switch Repair procedures

Removal and Installation 1. Remove the under cover. 2. Remove the oil drain plug, and drain the oil into a container. ...

Oil Pan Repair procedures

Removal 1. Remove the under covers. 2. Drain engine oil. 3. Using the SST(09215-3C000) and remove the oil ...
