Kia Carens: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Troubleshooting

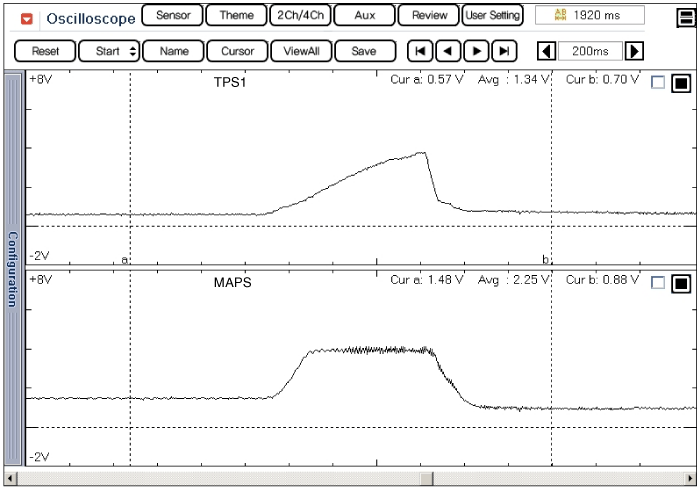

Signal Waveform

Manifold Absolute Pressure Sensor (MAPS) Specifications
Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) ...

Manifold Absolute Pressure Sensor (MAPS) Schematic diagrams
Circuit Diagram (M/T) (A/T) ...
